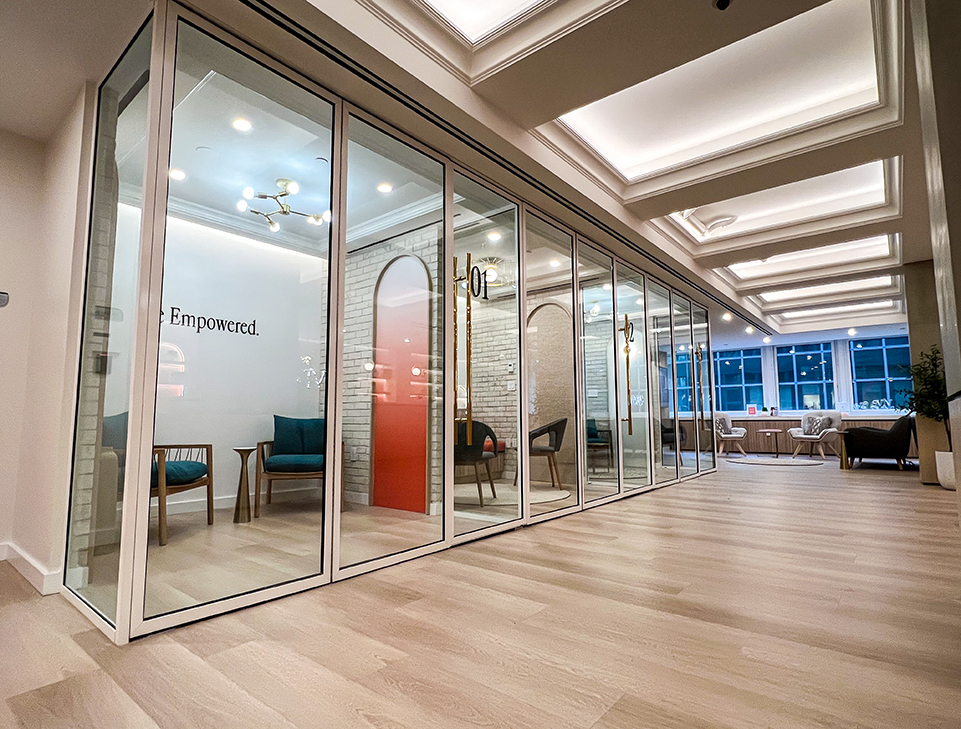

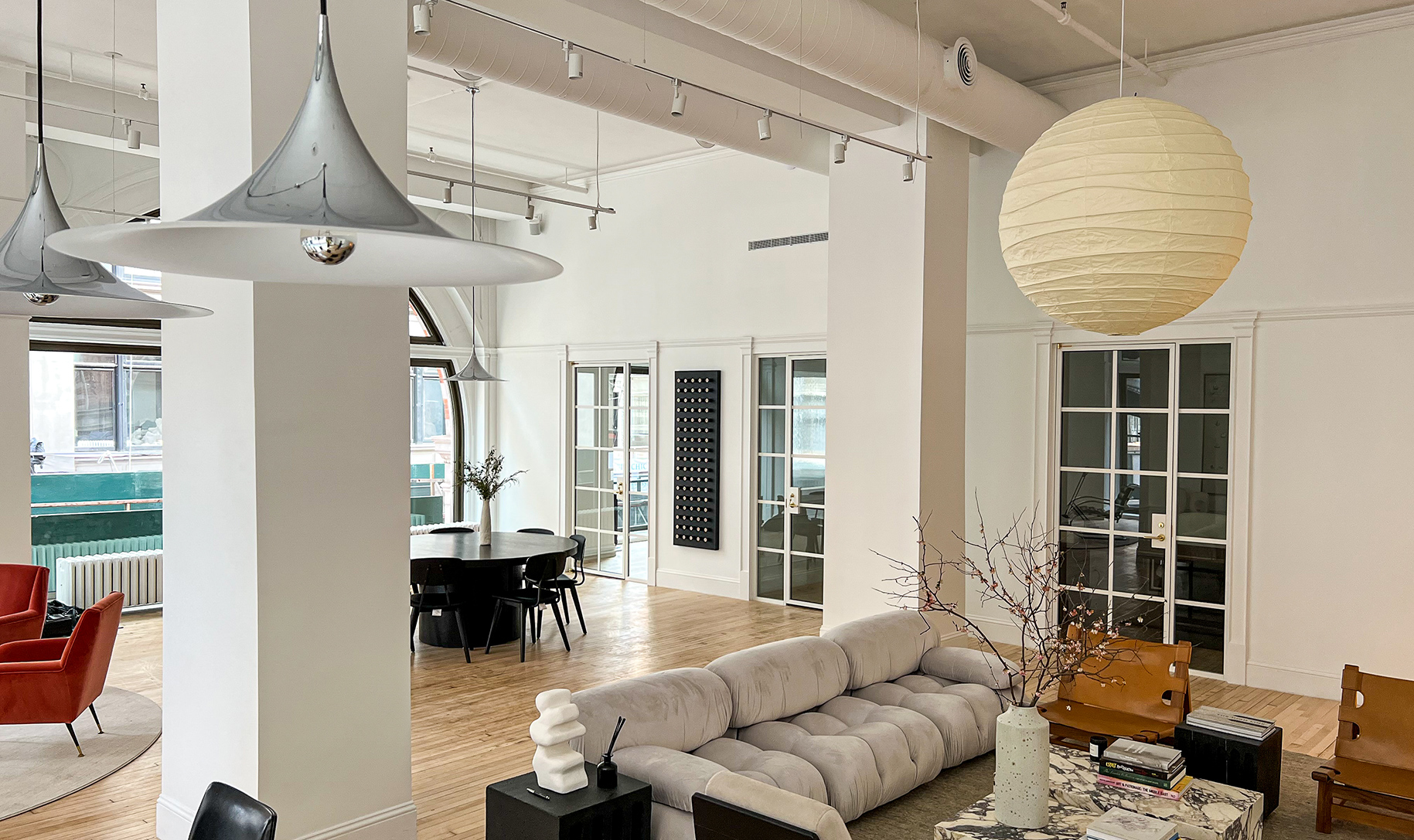

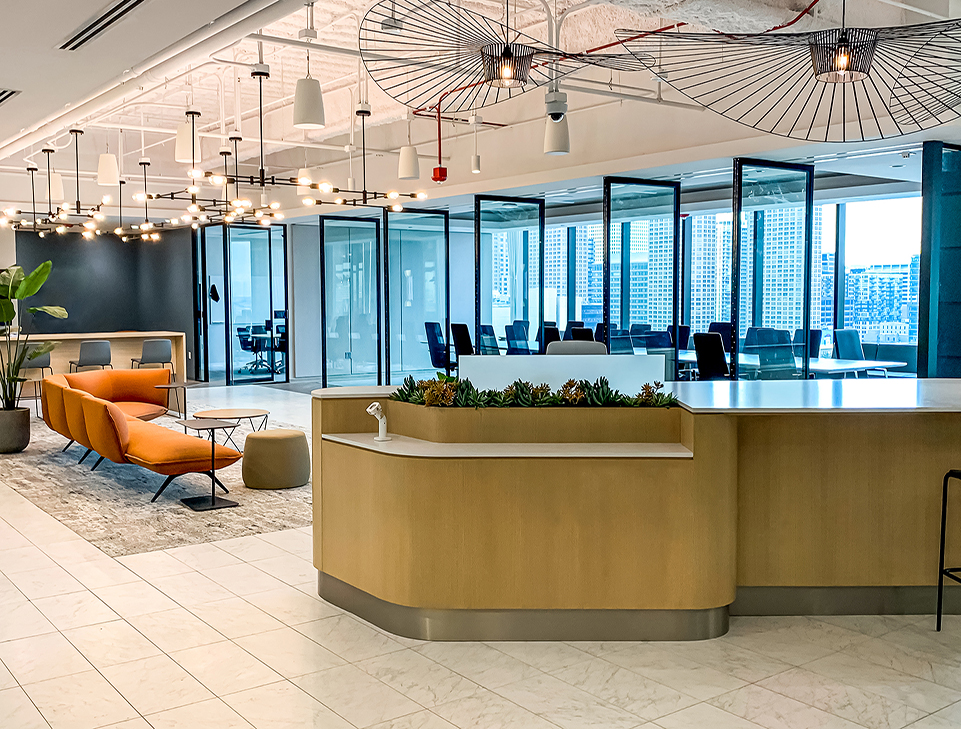

ZONA 1

  • Dimensions: 1 1/4″w x 1 1/2″h
  • Single glazed system, up to 10 ft high
  • Glass thickness: 3/8″, 1/2″, 5/8″
  • Fixed, swing, or sliding panels
  • Butt joint or vertical divided glass
  • Available horizontal and vertical sash
  • STC 34 to 38
  • Telescopic panels
  • SPECS

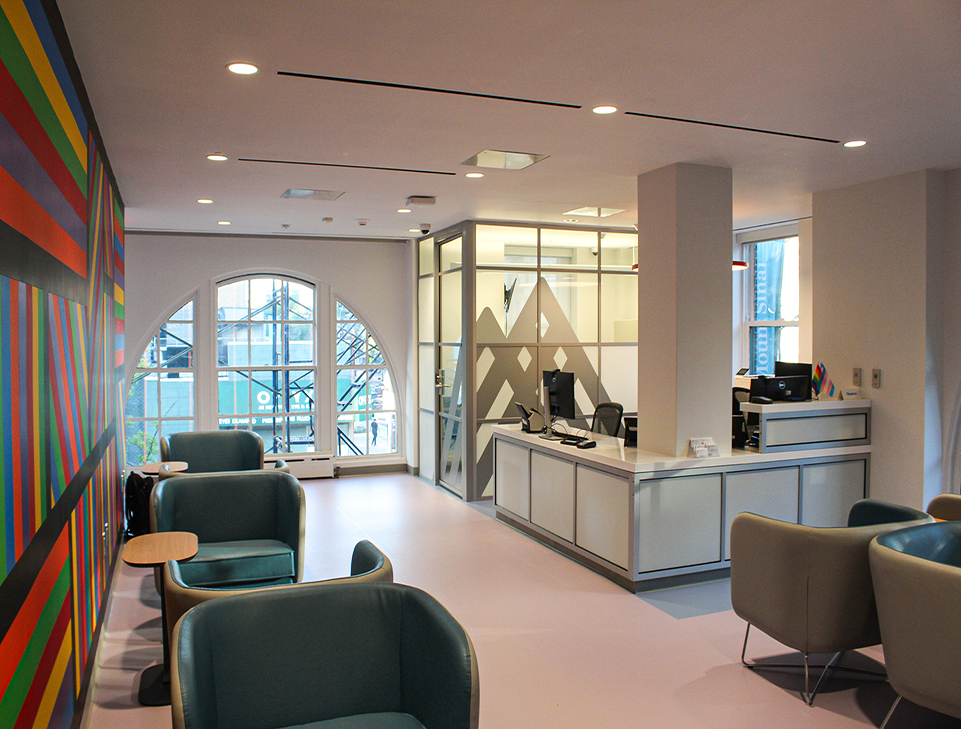

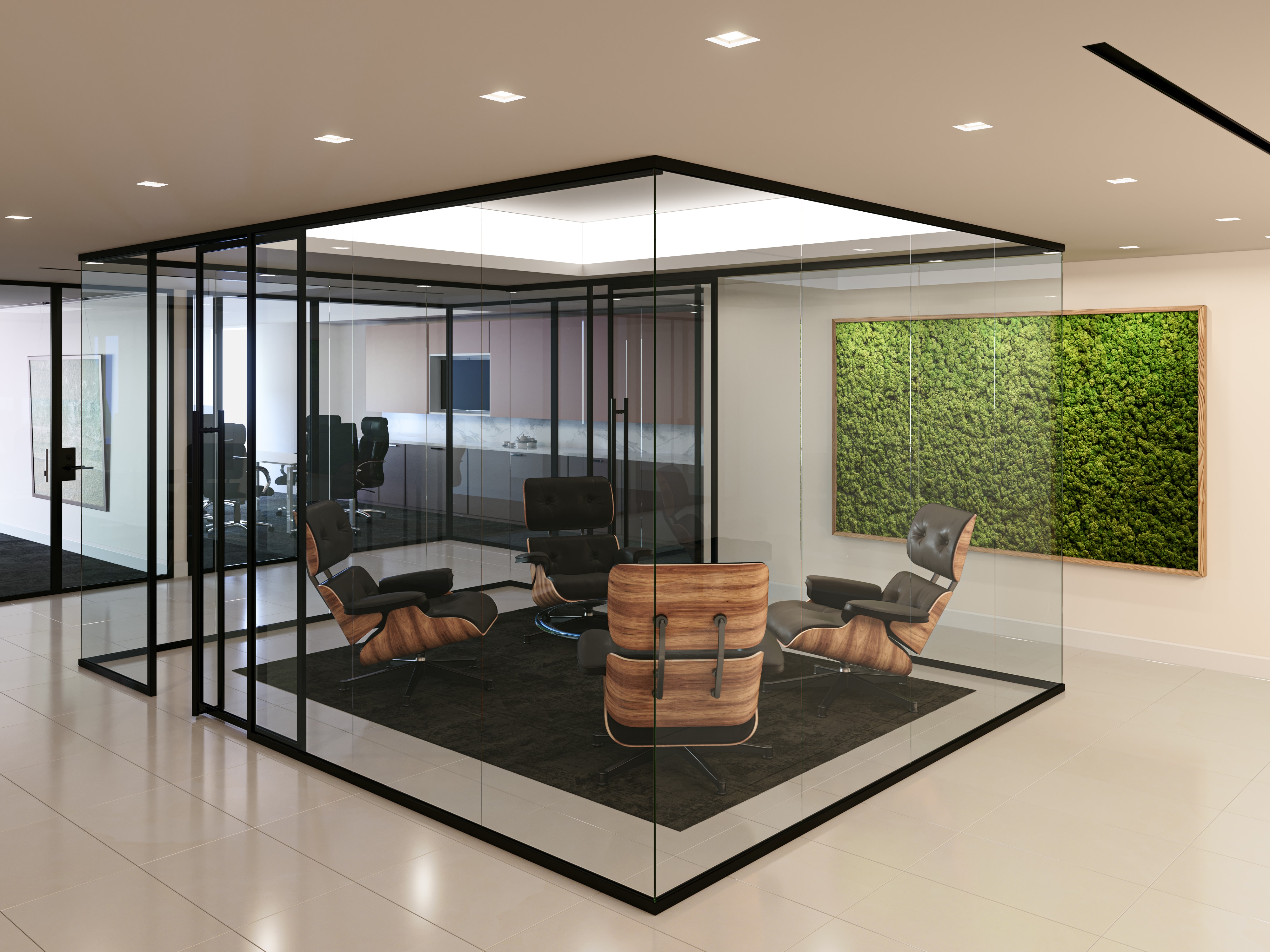

ZONA 2

  • Dimensions: 2″w x 1 1/2″h
  • Single glazed system, up to 10 ft high
  • Glass thickness: 3/8″, 1/2″, 5/8″
  • Off-center flush mounted glass
  • Fixed, swing, or sliding panels
  • Butt joint or vertical frame divided
  • Available horizontal and vertical sash
  • STC 35 to 38
  • Available wood door
  • SPECS

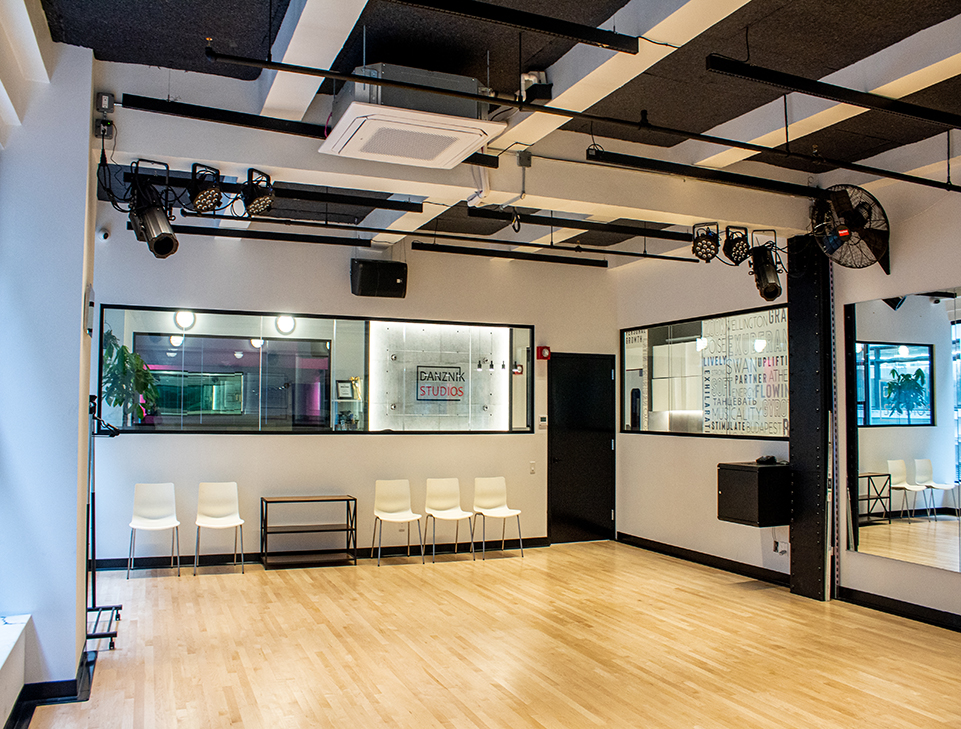

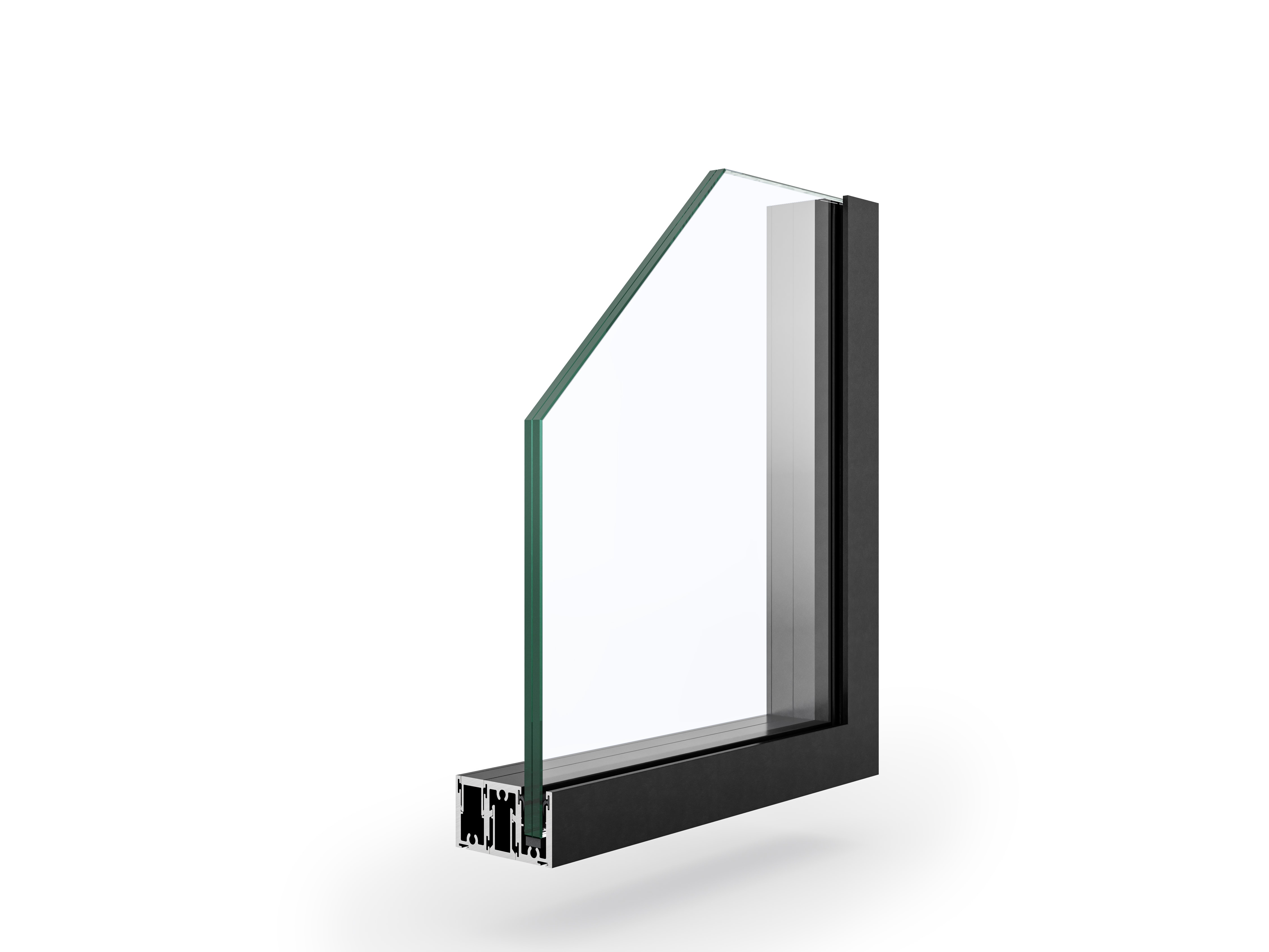

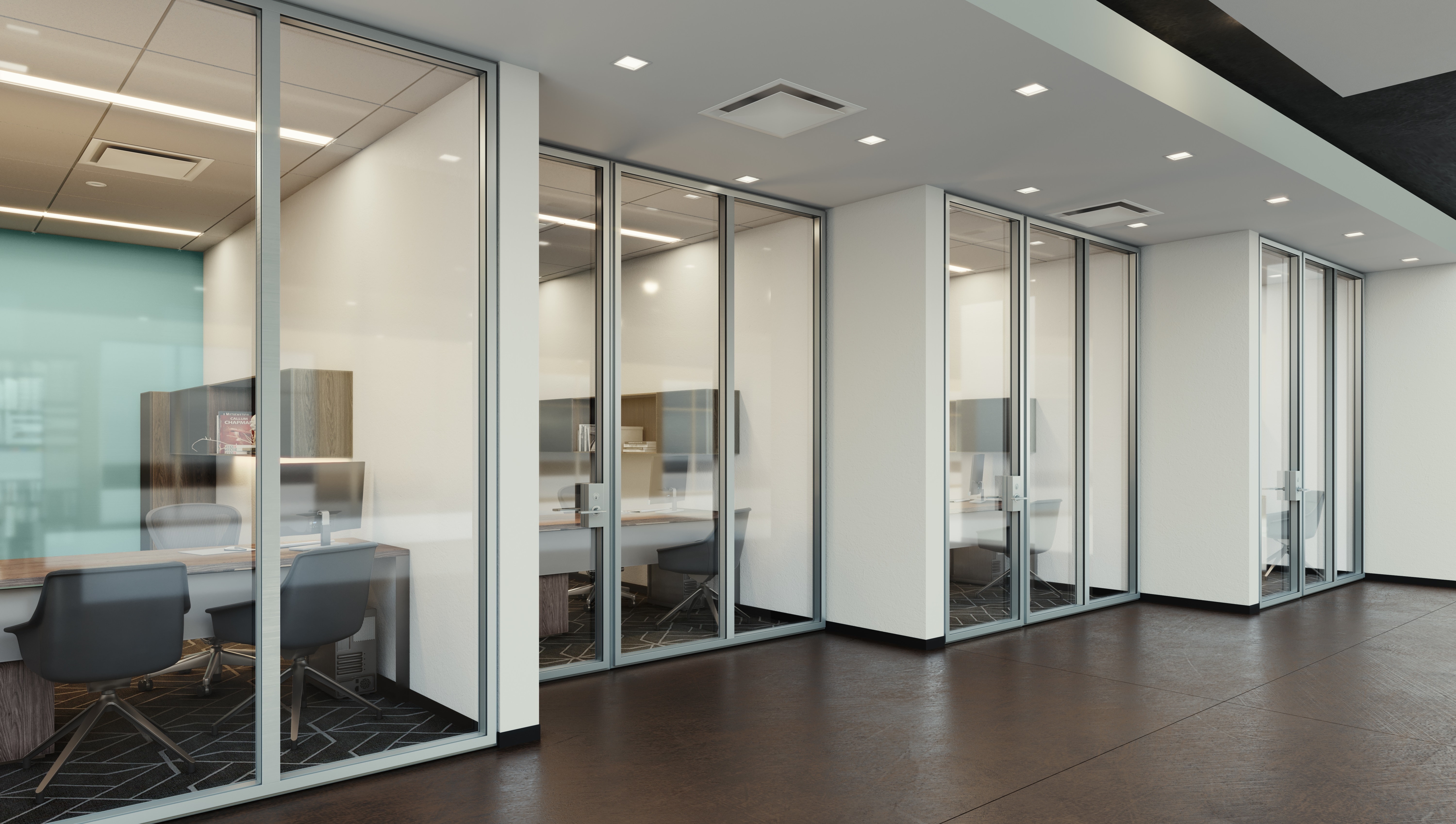

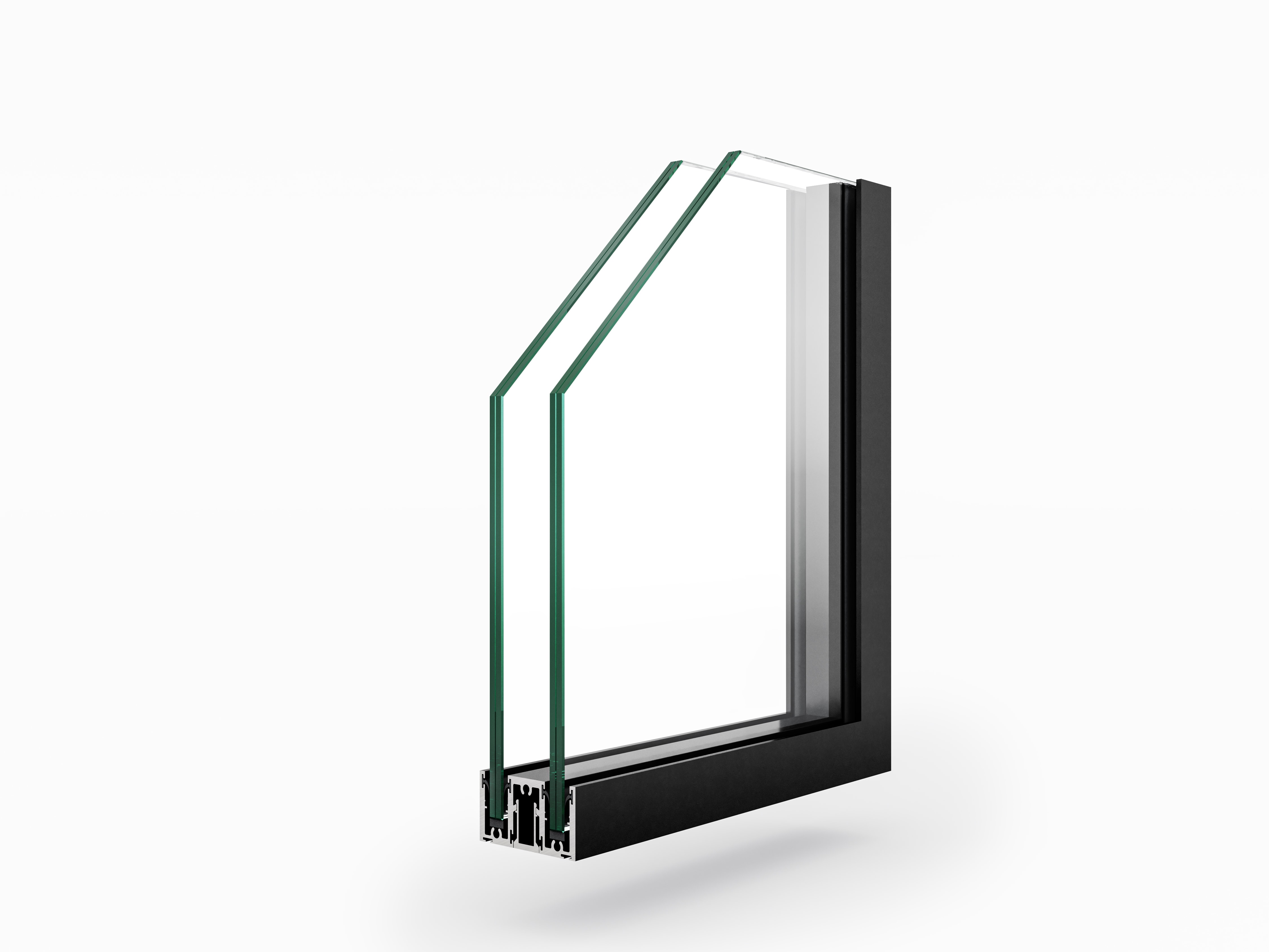

ZONA 3

  • Dimensions: 3”w x 1 1/2″h
  • Single or double glazed
  • Glass thickness: 3/8″ & 1/2″ to 10 ft high
  • Flush mounted glass
  • Swing double glazed or wood doors
  • Butt joint or vertical frame divided
  • STC 38 to 40
  • SPECS

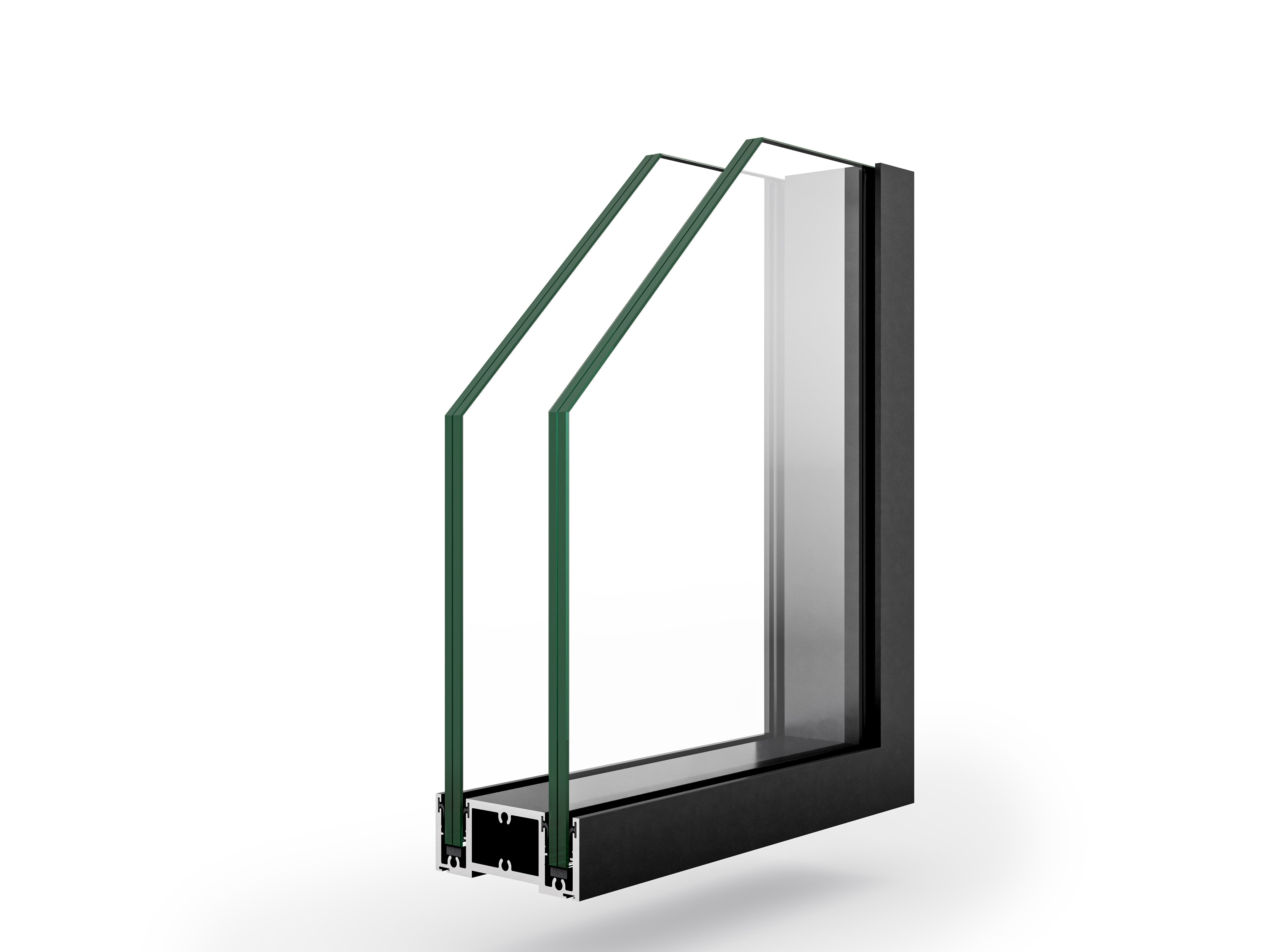

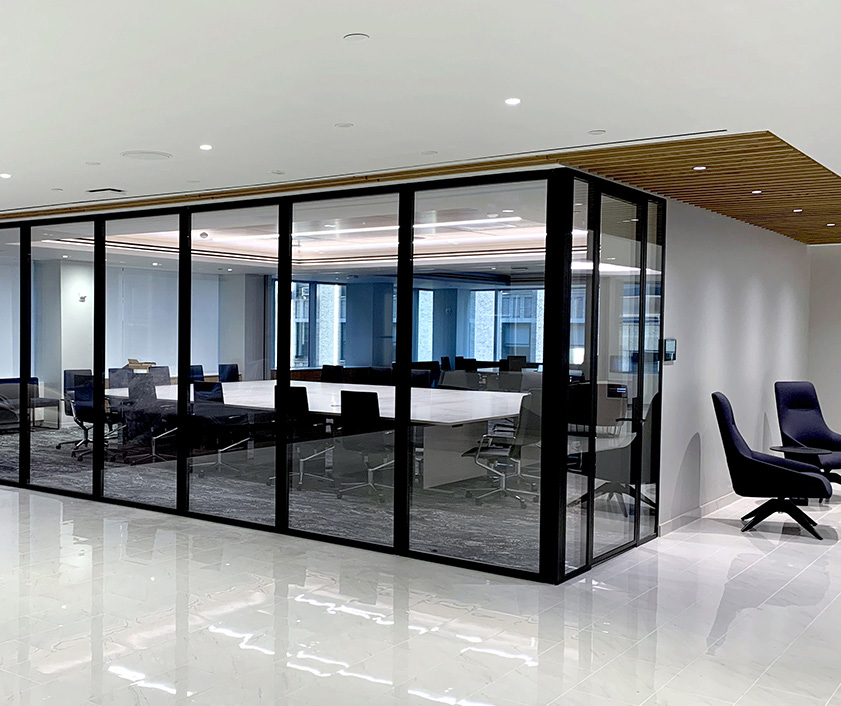

ZONA 4

  • Dimensions: 4″w x 1 1/2″h
  • Custom width available
  • Double glazed system, up to 10 ft high
  • Glass thickness: 3/8″ & 1/2″ to 10 ft high
  • Flush mounted glass
  • Swing double glazed or wood doors
  • Butt joint or vertical divided glass
  • STC 45 to 51
  • SPECS

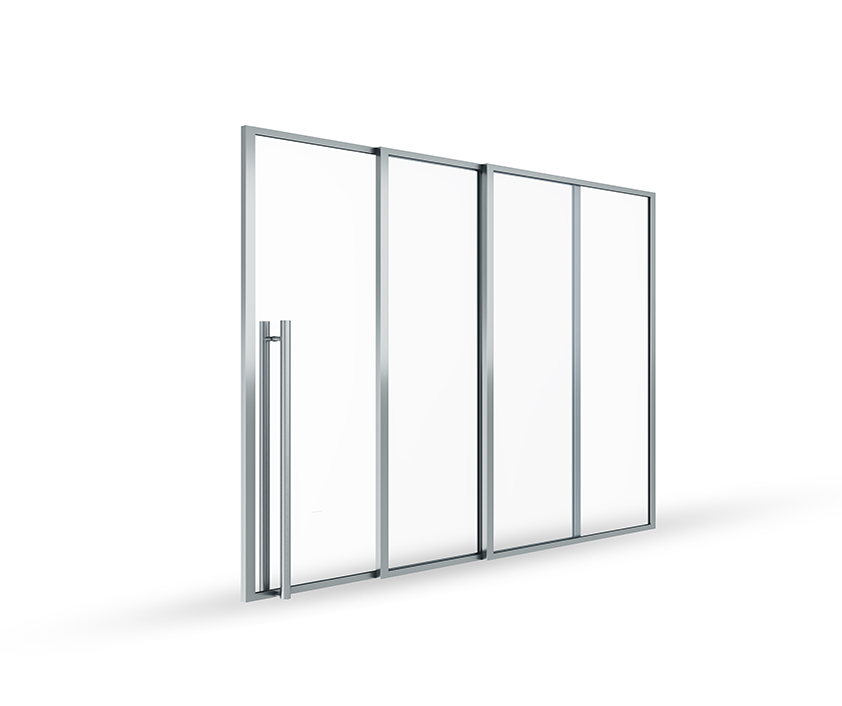

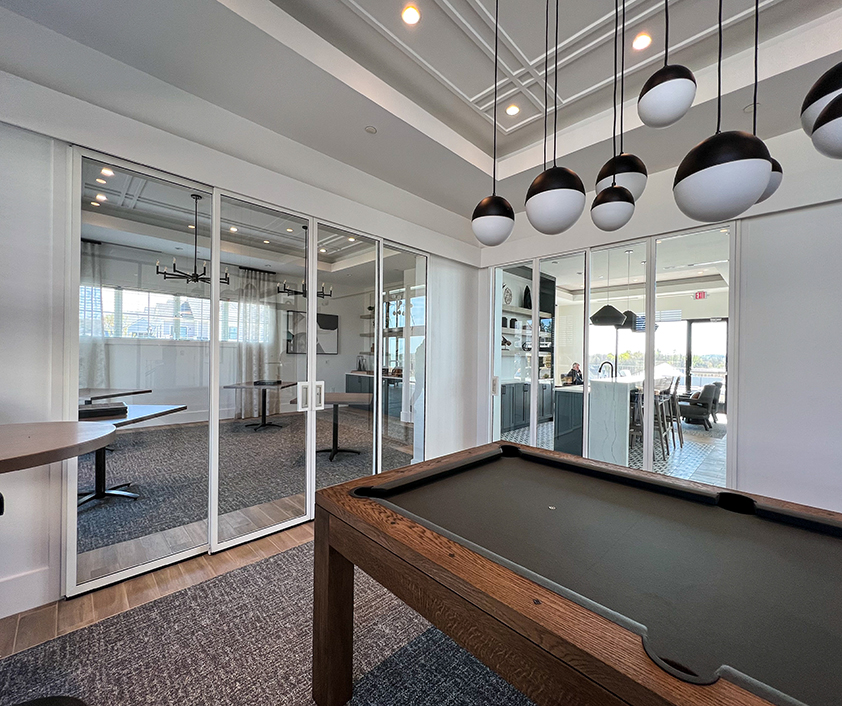

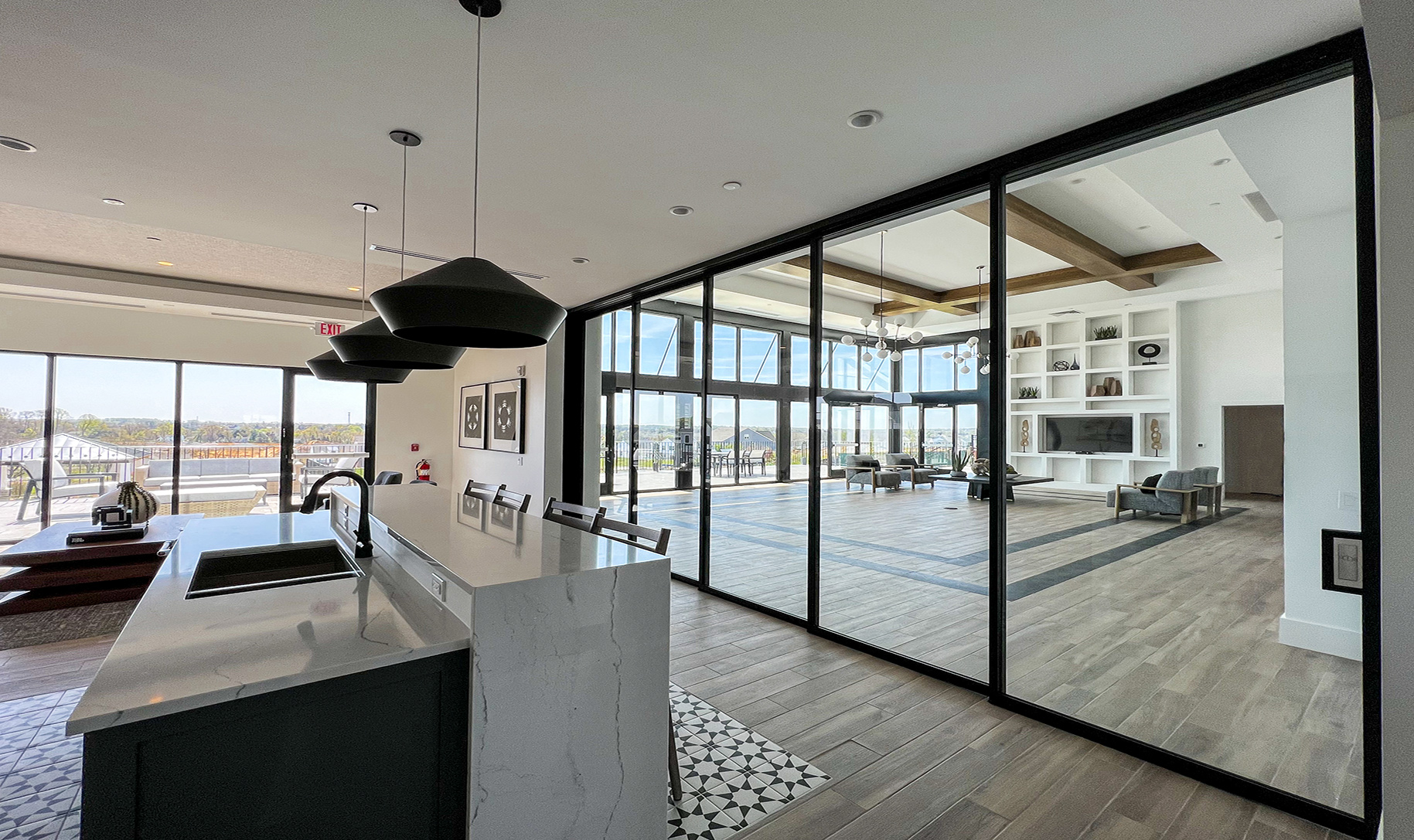

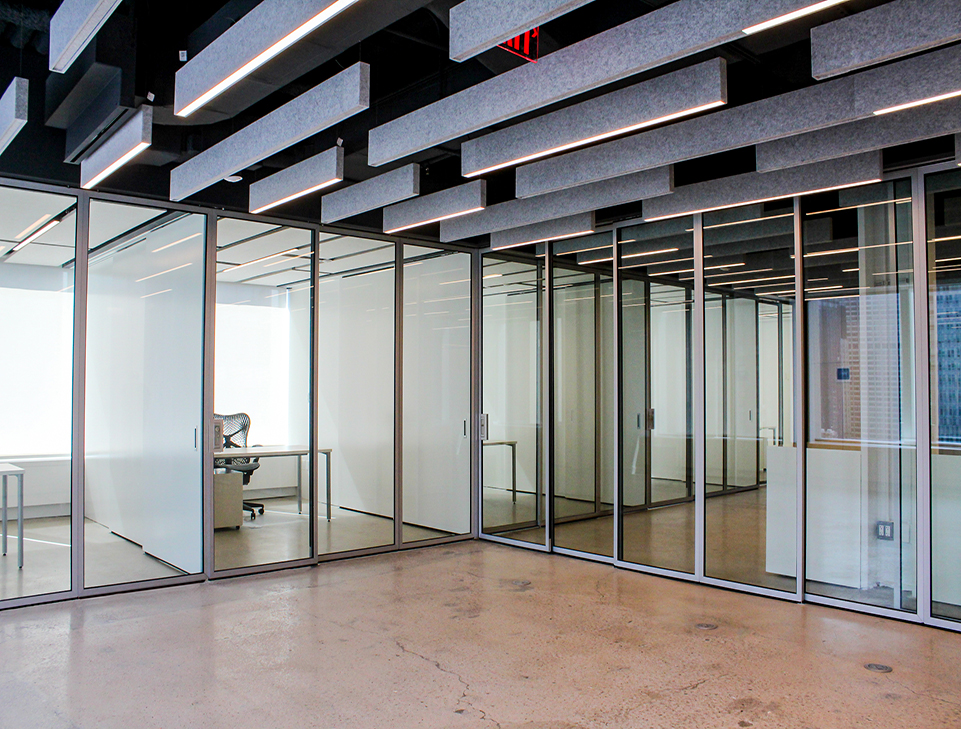

LYNX TELESCOPIC
LYNX TELESCOPIC™ systems offer space utility while maintaining slim lines. Our sliding door frames align with the horizontal and vertical frames of the fixed panels.

BROCHURE

Whether you want them to slide or swing, ZONA offers flexible and innovative solutions for glass or wood doors. ZONA’s glass doors are beautifully framed with no exposed glass edges for safety and aesthetics.
Horizontal sash is also available.

ZONA also works with a variety of decorative and specialized hardware manufacturers to meet the requirements of every project. ZONA is the premium Glass Wall System designed to achieve a consistent aesthetic.

Slim Framed Glazed


Available With: ZONA 1


Door Thickness: 1” Thick


Operation: Swing, Slide, Telescopic


Hardware: Locking & Non-locking Pulls


Closing Options: Free Swing, Concealed Header, Floor Close


Standard Framed Glass


Available With: ZONA 2, 3, 4


Door Thickness: 1 3/4” Thick


Operation: Swing or Slide


Hardware: Pulls, Lockset & Lever


Closing Options: Free Swing, Concealed Header, Floor Closer


Standard Framed Glass


Available With: ZONA 3 & 4


Door Thickness: 2 1/4” Thick


Operation: Swing


Hardware: Pulls, Lockset & Lever


Closing Options: Free Swing


ZONA® Glass Wall Systems are also available in a variety of anodized finishes and

hundreds of powder-coated RAL colors.

Glass Types & Finishes

ZONA Glass Wall Systems can incorporate a variety of glass types to meet your specification and features level II anodized finishes for consistency and durability.

Also available in hundreds of powder coated RAL colors.

  • Tempered
  • Clear
  • Laminated
  • Low Iron
  • Switch Glass
  • Specialty Glass
  • Clear
  • Black
  • Light Bronze
  • Medium Bronze
  • Dark Bronze
  • Champagne

Customized Function

Aesthetic Consistency
